Meowbit - Codable Console for Microsoft Makecode Arcade

Meowbit - Codable Console for Microsoft Makecode Arcade

$ 99.00

$ 0.00

Save: $

Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

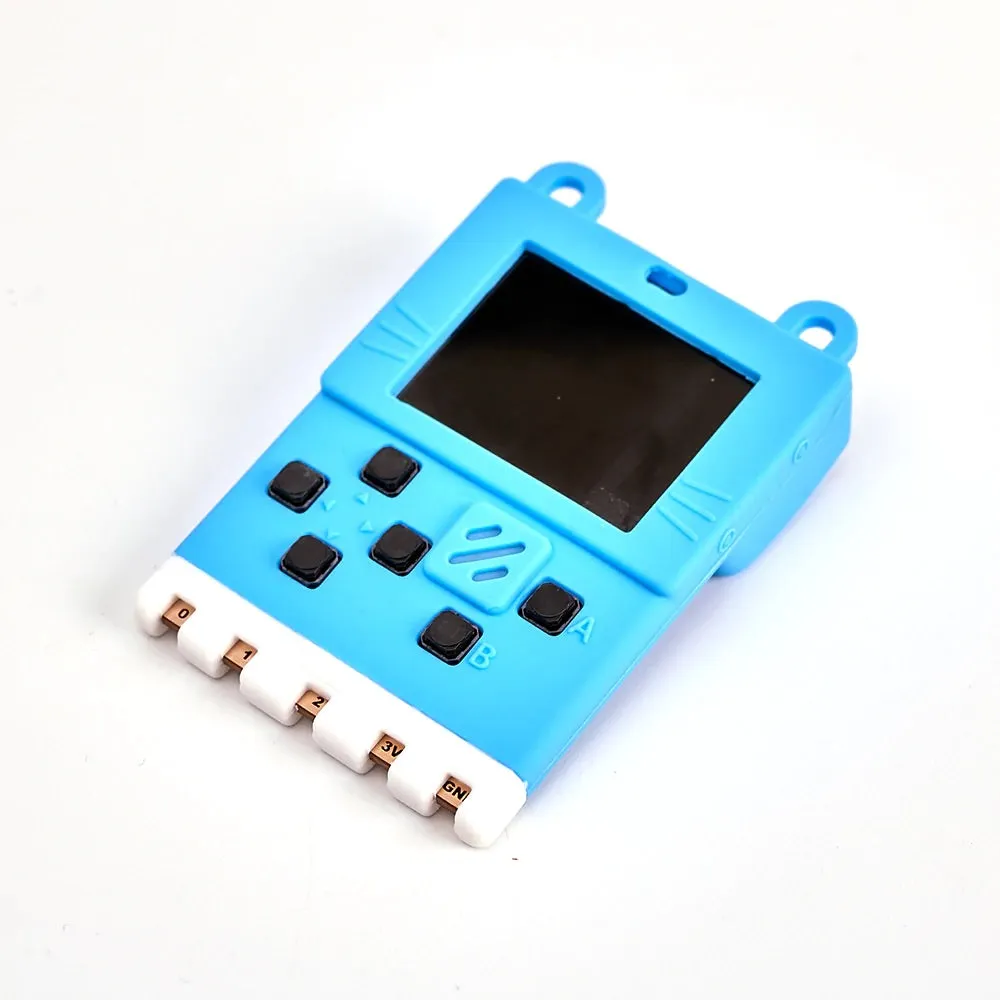

From the creative and cat-lovin' engineers at KittenBot comes the Meowbit - a handheld retro gaming computer for coding your own games with MakeCode Arcade and MicroPython. This design is really fun, with a GameBoy-like shape that can plug into micro:bit expansion boards. The built in display is a 160x128 color 1.8" TFT screen with the familiar ST7735 chipset over SPI. You also get 8 buttons (4-way D-Pad, A and B, menu and reset) to make games or interface with, and there's also a built-in speaker and SD card. For inputs there's a bunch of sensors including a light sensor, temperature sensor and even a 6-DoF gyro accelerometer.

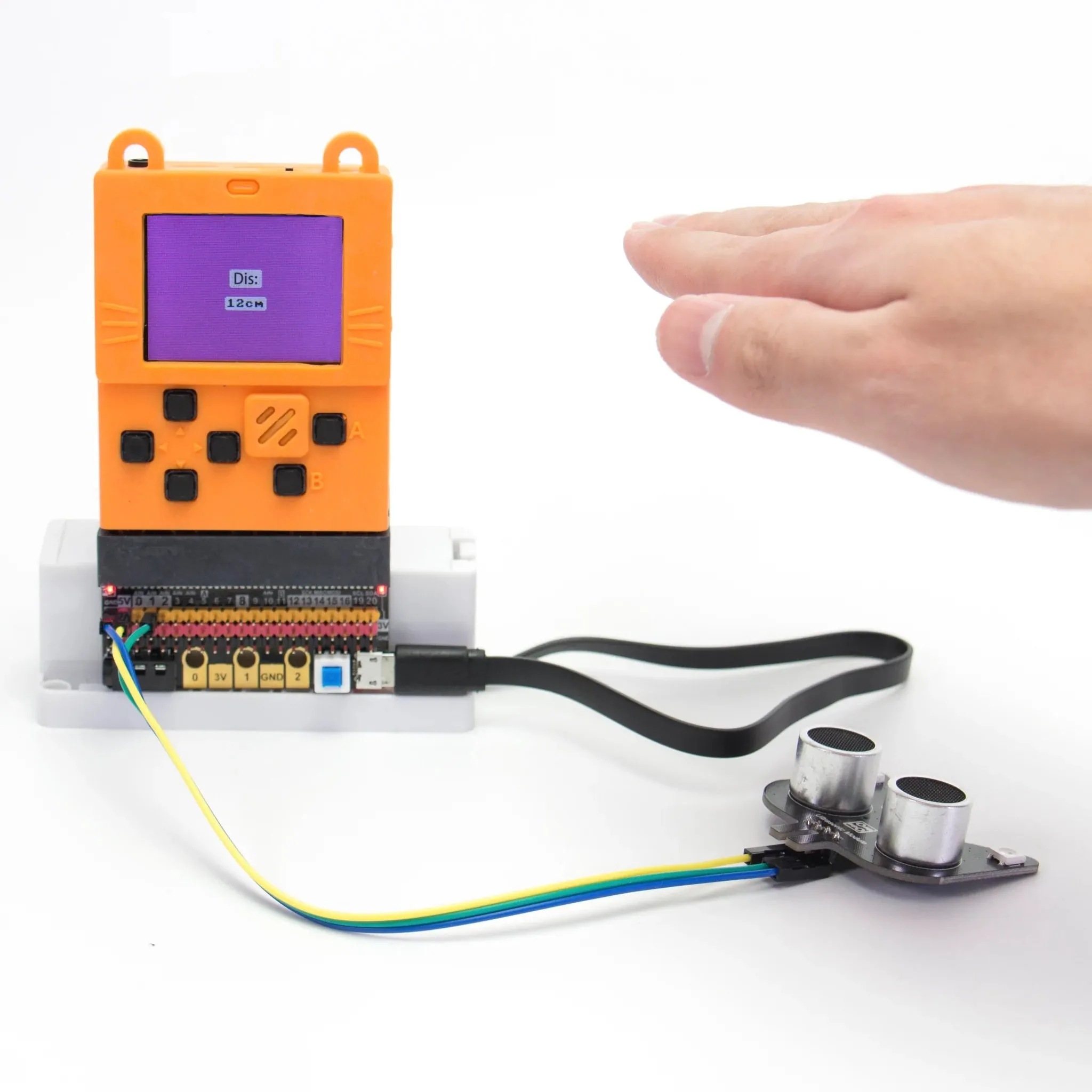

The micro:bit-familiar edge connector opens up access to many micro:bit expansion boards, but please note that the Meowbit isn't a micro:bit, it uses a different chipset (STM32) and does not have wireless or bluetooth. However, it is a great portable game platform for both Arcade and MicroPython (and you could probably get it working with Arduino or other C platforms, pretty easily!)

Check out these cool features:

STM32F401 Cortex M4 CPU with native USB support
USB program download port / charging port with USB drag-n-drop bootloader (UF2)
Li-Poly charging circuitry and charging indicator LED. Lipoly battery not included, please pick one up separately.
160 x 128 TFT color screen
4 x Direction buttons, A B Buttons, menu/boot mode button, reset button
Light sensor
Temperature sensor
MPU6050 gyroscope
On-off power switch
2 x Programmable LEDs
Buzzer
SD card slot
Headphone "JACDAC" Multiplayer Connector (this is not a headphone audio port!)
2 MB SPI-flash (default download unicode character table)
Edge connectors compatible with micro:bit
Silicone cover

From the creative and cat-lovin' engineers at KittenBot comes the Meowbit - a handheld retro gaming computer for coding your own games with MakeCode Arcade and MicroPython. This design is really fun, with a GameBoy-like shape that can plug into micro:bit expansion boards. The built in display is a 160x128 color 1.8" TFT screen with the familiar ST7735 chipset over SPI. You also get 8 buttons (4-way D-Pad, A and B, menu and reset) to make games or interface with, and there's also a built-in speaker and SD card. For inputs there's a bunch of sensors including a light sensor, temperature sensor and even a 6-DoF gyro accelerometer.

The micro:bit-familiar edge connector opens up access to many micro:bit expansion boards, but please note that the Meowbit isn't a micro:bit, it uses a different chipset (STM32) and does not have wireless or bluetooth. However, it is a great portable game platform for both Arcade and MicroPython (and you could probably get it working with Arduino or other C platforms, pretty easily!)

Check out these cool features:

STM32F401 Cortex M4 CPU with native USB support
USB program download port / charging port with USB drag-n-drop bootloader (UF2)
Li-Poly charging circuitry and charging indicator LED. Lipoly battery not included, please pick one up separately.
160 x 128 TFT color screen
4 x Direction buttons, A B Buttons, menu/boot mode button, reset button
Light sensor
Temperature sensor
MPU6050 gyroscope
On-off power switch
2 x Programmable LEDs
Buzzer
SD card slot
Headphone "JACDAC" Multiplayer Connector (this is not a headphone audio port!)
2 MB SPI-flash (default download unicode character table)
Edge connectors compatible with micro:bit
Silicone cover
Note: Adafruit have Meowbit in blue and orange, but the selection is random per order. Adafruit can't change which one you get!

TECHNICAL DETAILS

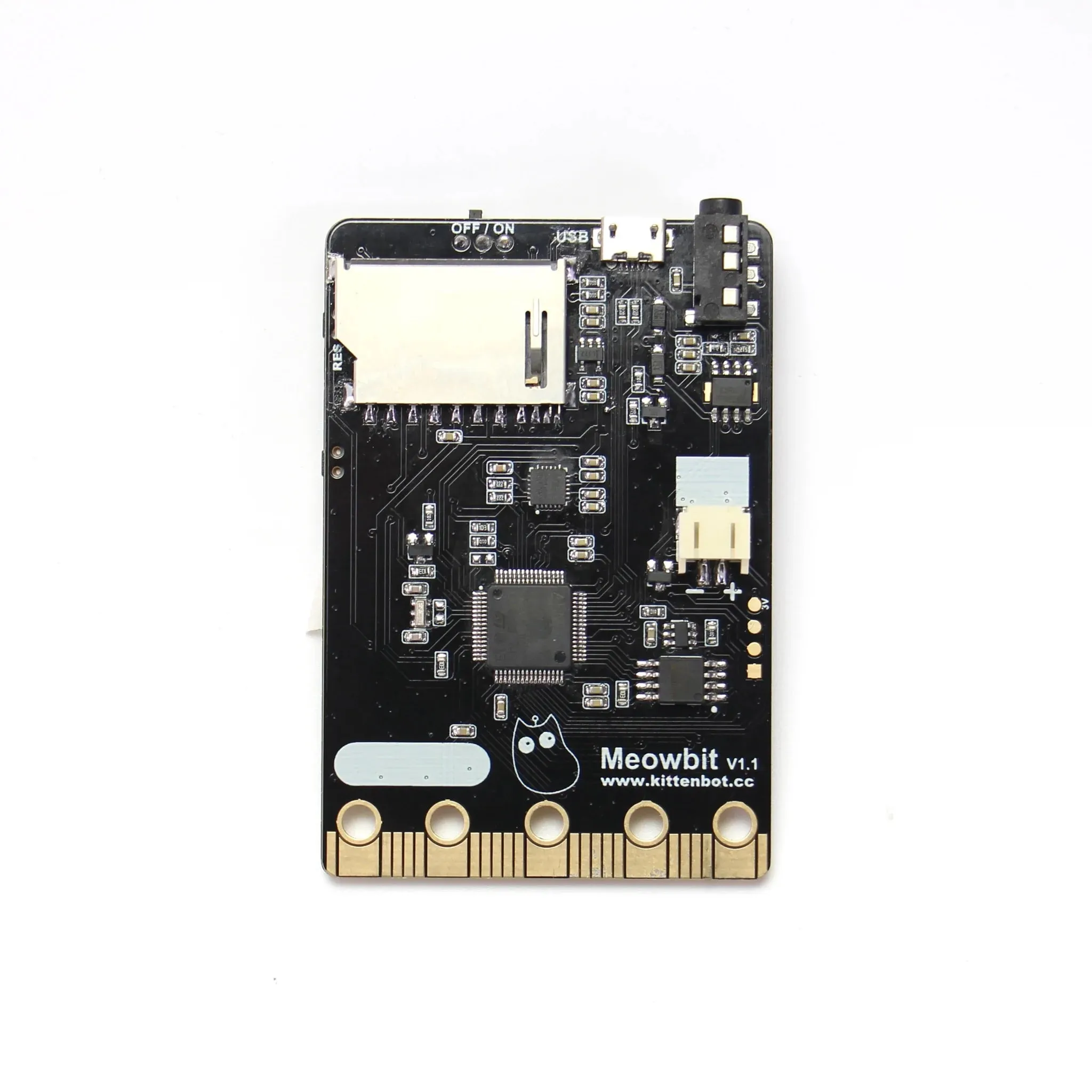

MCU: STMicro STM32F401RET6 Arm Cortex M4 micro-controller
Storage:
2MB SPI flash to store Unicode character table (default)
SD card slot to store programs or extend wireless modules

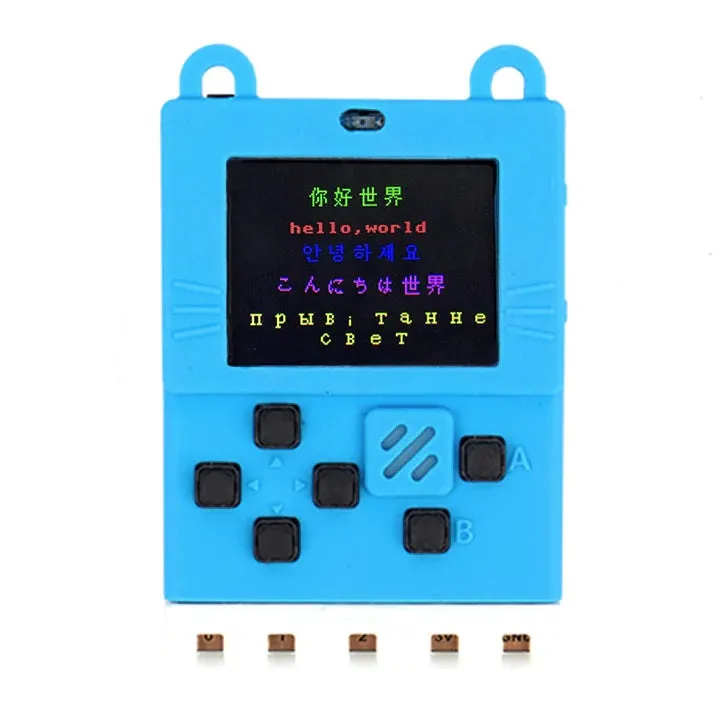

Display: 160 x 128 full-color TFT LCD
Sensors: Light sensor, temperature sensor, MP6050 gyroscope
USB: 1 x micro USB port for power and programming
Expansion: 40-pin BBC micro:bit “gold edge finger” connector
Charging/work LED, 2x user LED, power switch, reset button, DFU mode button, 4x direction buttons, A/B buttons, buzzer, multiplayer connector (15)
Power Supply: 5V via USB, or 3.7~4.2V via a Lithium battery pack; output current: 500mA (max); operating voltage: 3.3V
Adafruit recommend the following Li-Po batteries:
Lithium Ion Polymer Battery with Short Cable - 3.7V 350mAh
Lithium Ion Polymer Battery with Short Cable - 3.7V 420mAh
Lithium Ion Polymer Battery Ideal For Feathers - 3.7V 400mAh
Dimensions: 52 x 76 x 12 mm
