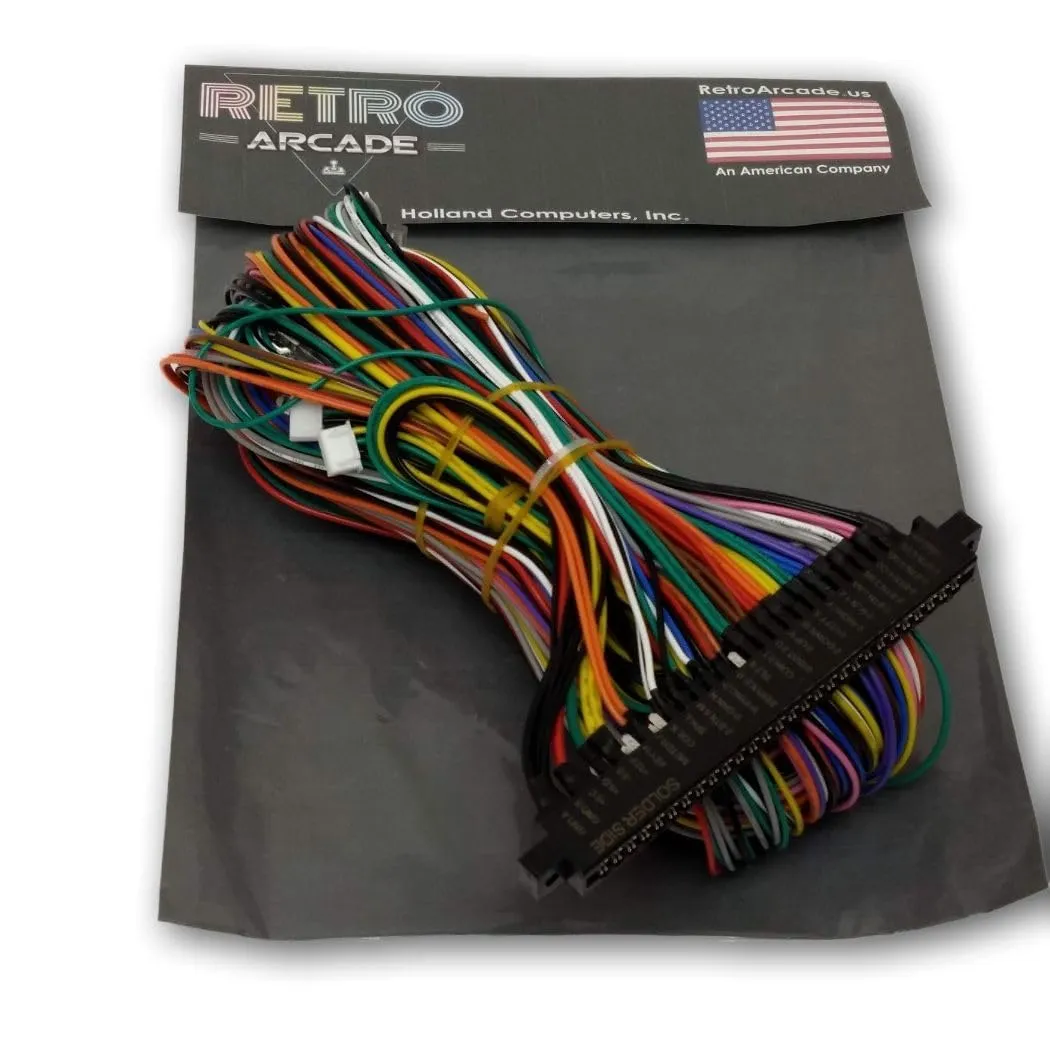

New Full Jamma Plus cabinet wring Harness Features: Connect 2 sets of controls for a 3 sided cocktail cabinet. Designed specifically for use with Jamma 1162-in-1 PCB supporting both vertical and horizontal games. Contains double set of wires for buttons and joystick Includes button 5 and 6 for both player 1 and 2 Includes -5v power line for older style boards Includes two Coin Meeter lines for Coin Counter 1 and 2 Designed with heavier quality wireProduct Information 18 gauge wire all other are 22 gauge wire. New Premium Standard 56 pin Jamma connector used on many arcade boards to simplify conversion of game cabinets with color coded connections for 2 players, power, coin doors, test, service, video, and sound. 28 pins on each side of the Jamma harness. It comes with edge connector, push button lugs, power leads, grounds, and RGB monitor output connection for hookup to older tube monitors. All leads have .187 quick disconnects for easy connecting of buttons and joysticks. Power lines have terminal forks for easy connection( 5VDC, 12VDC, GND) to game power supply, full grounding loop for all joysticks and buttons on your control panel. Product Features: Edge connector includes -5Volts (as well as all other voltages) Button 4 5 are also connected into the harness Both ground connections are wired into the harness (pins 1 2 27 28) All pins on edge connector are protected by heat shrink All end connectors are designed for quick connection (no soldering) and protected by plastic sleeves Easy to follow plugs and connections for your monitor, speakers, power supply, and coin meter. Used for all game boards that uses the standard Jamma wiring standard. Click Here for wiring diagrams and manuals! UPC: 740016535928 ; Warranty: 90 Day DOA exchange warranty only Installation of this product requires professional electronic experience , use at your own risk. Search_Terms: Jamma 60-in-1 PCB, iCade, Arcade Multigame, Multicade board, JAMMA, Jamma PCB, Jamma 60-in-1, 60 in 1, Jamma Boards, 60 in 1 Arcade, 60 in 1 Jamma, Jamma Arcade, iCade 60 in 1, iCade 60-in-1, Jamma Board, Jamma wiring harness, jamma LED wiring, arcade wiring harness

• Product Dimensions ‏ : ‎ 12 x 9 x 6 inches; 1.2 Pounds
• Date First Available ‏ : ‎ June 4, 2019
• Manufacturer ‏ : ‎ RetroArcade.us
• Country of Origin ‏ : ‎ USA
